Product Information

LoadForce Hub brake drum 10-inch x 2.25 inch Ford 5 stud with Parallel (Ford) bearings. Supplied with quality Japanese bearings and Australian made hub seal. Suits Ford rims with a minimum spigot diameter of 83mm.

Hub brake drum 10 inch x 2.25 inch Ford 5 stud with slimline bearing. Ford 5 stud measurements:

Stud diameter: 1/2 inch.

PCD (Pitch circle diameter): 114.3mm (4.5inches).

Stud distance: 67mm.

Bearing: Parallel / Ford: Inner LM68149/10 ; Outer L68149/10

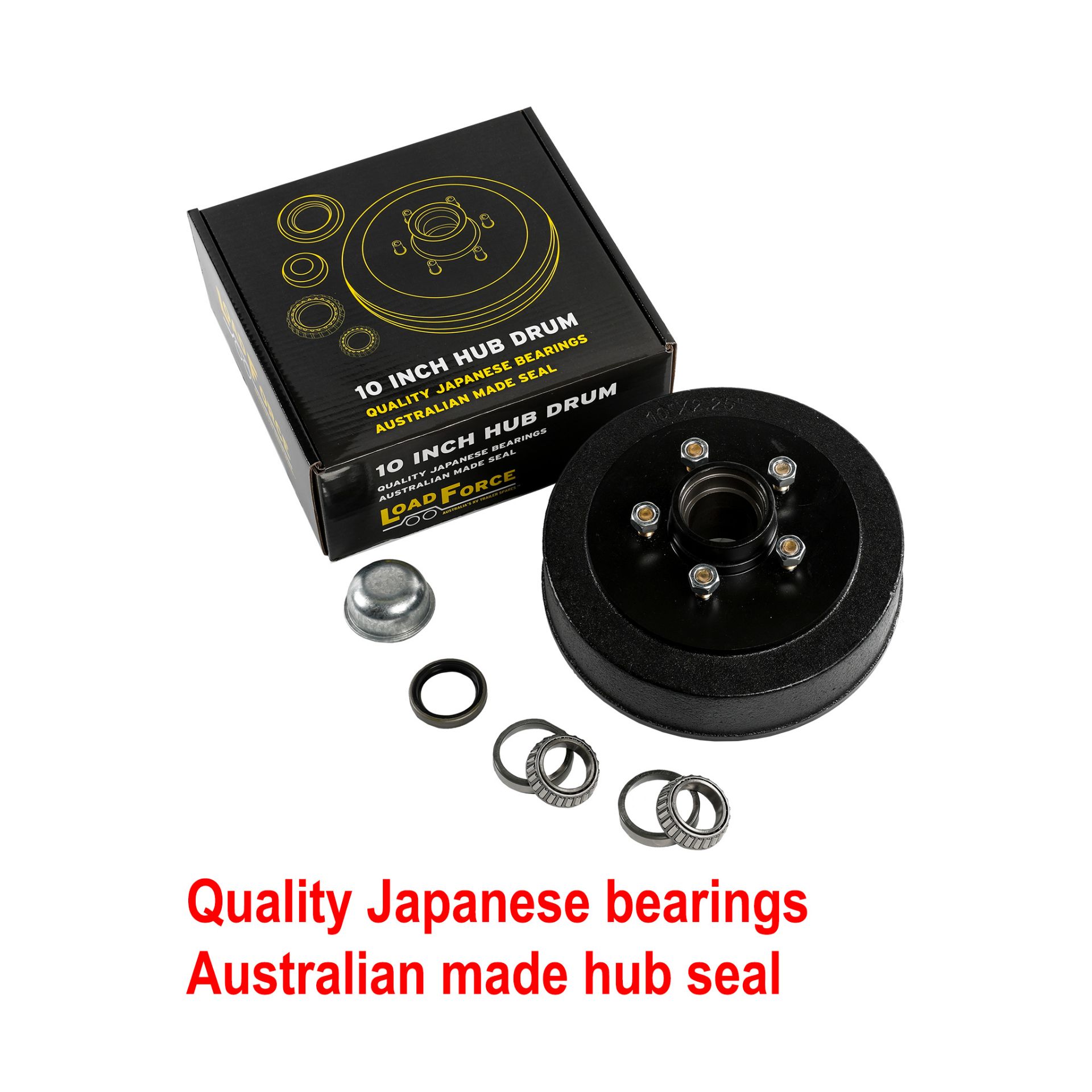

All brake drum assemblies come boxed complete with studs, nuts, bearings, seal and dust cap.
