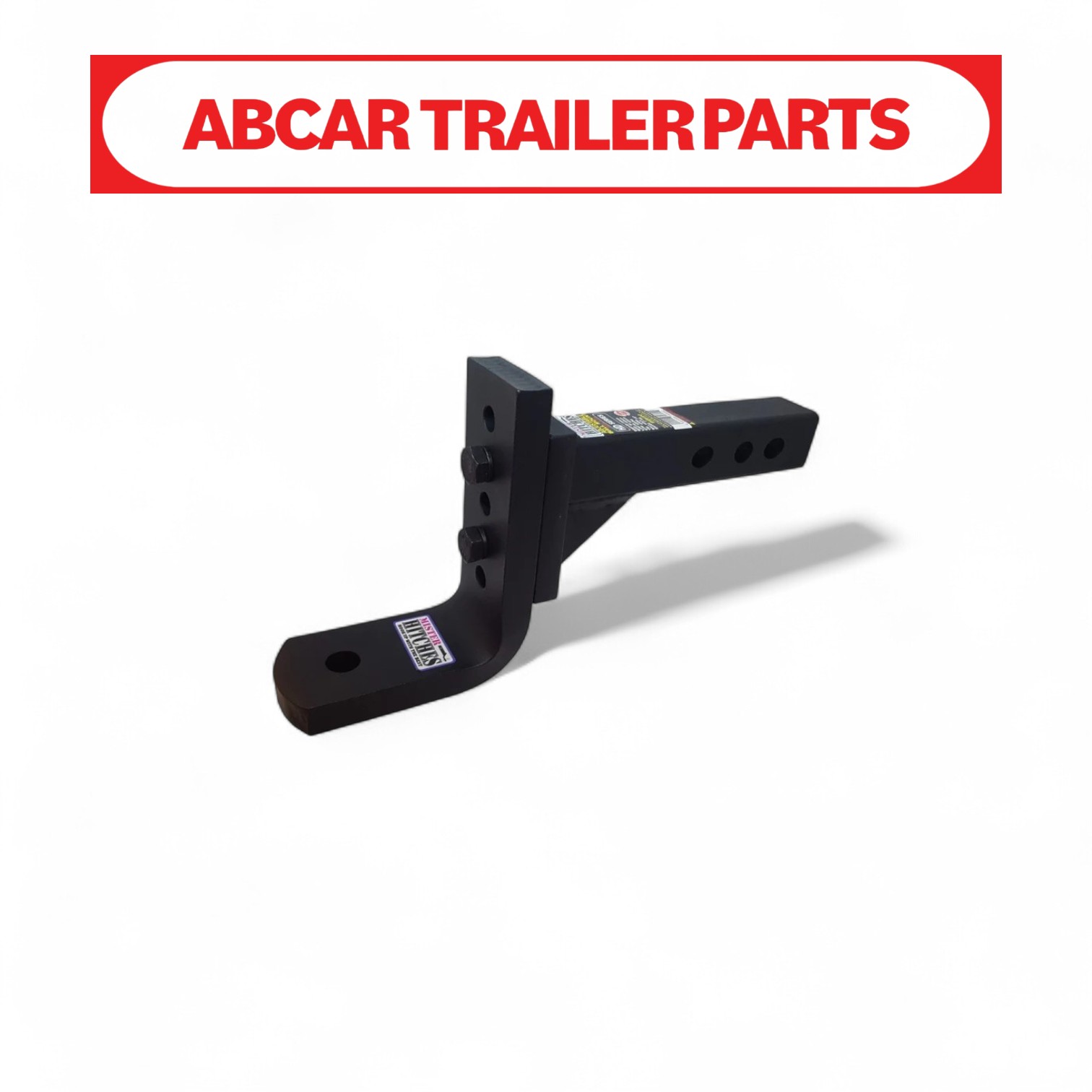

• ADJUSTABLE & FULLY REVERSIBLE - 12 STAGES
• BOTH SECTIONS OF THIS HITCH CAN BE INVERTED.
• 6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
• 6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM
• 10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
• NEW MODEL WITH 3 PIN HOLES (RANGER SHORT SHANK COMPATIBLE)
• USES 12.9 GRADE HIGH TENSILE 16MM BOLTS - TORQUE TO 189Nm
• 25MM X 75MM HEAVY DUTY BALL PLATFORM.
• MATT BLACK SEAGUARD FINISH
• ROBOTIC WELDED FOR CONSISTENT QUALITY
• CNC MACHINED FOR MAXIMUM ACCURACY
• FITS 2" X 2" TOWBAR RECEIVERS
• COMPLIES WITH THE TEST REQUIREMENTS OF ADR62/02

GROSS TRAILER WEIGHT: 4000KG

TONGUE WEIGHT: 400KG

BALL HOLE SIZE: 7/8"

MAX DROP: 190MM

MAX RISE: 165MM

LENGTHS: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) 266/305/331MM

PIN HOLES TO END OF SHANK 50MM, 76MM, 115MM

END OF SHANK TO GUSSET 164MM

SUITS STONE STOMPER & MOST COUPLINGS EG. D035
