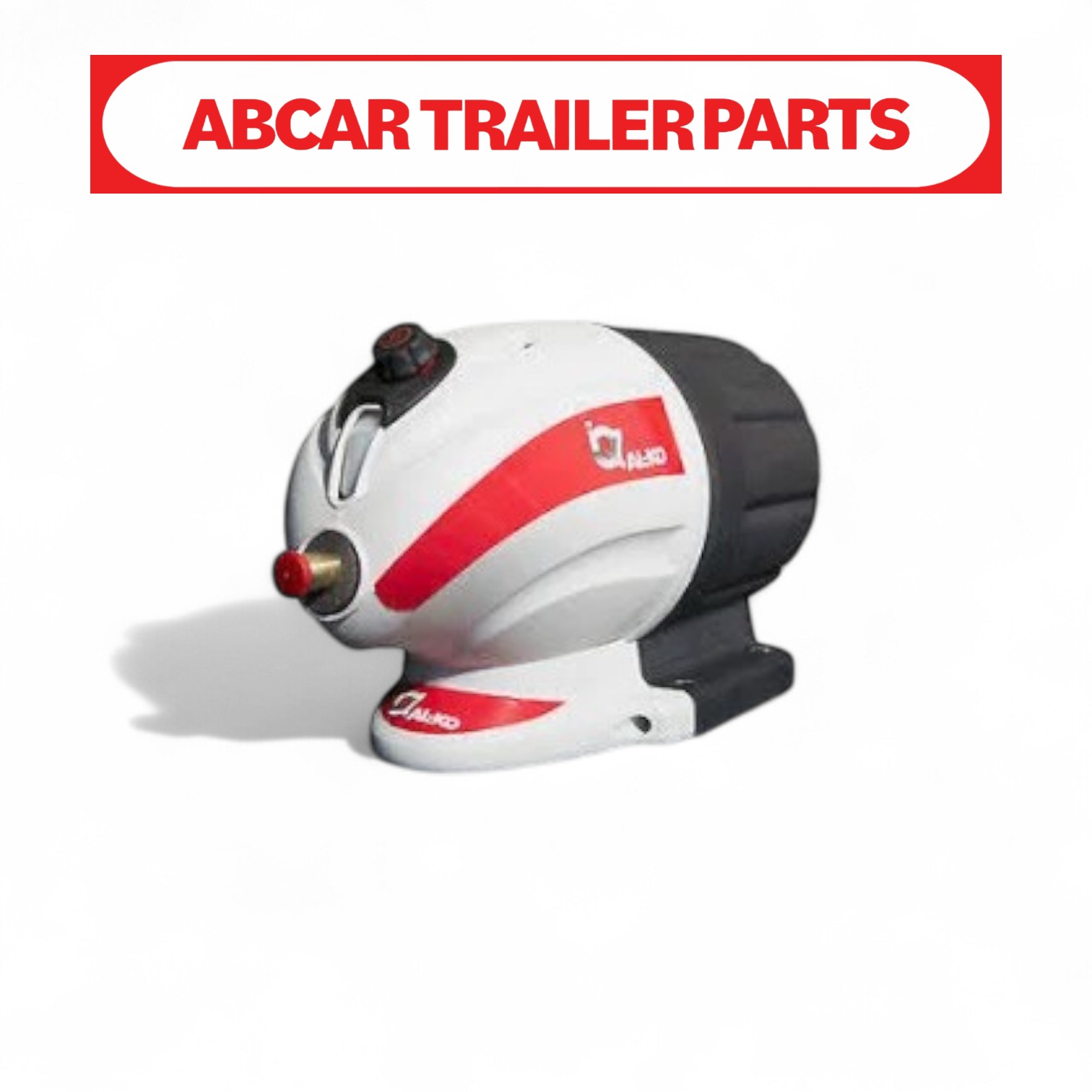

This iQ7 Brake Actuator is designed to significantly improve stopping performance and safety for trailers with hydraulic brakes, especially large boat trailers. It allows immediate brake application the instant it is required. includes inbuilt breakaway technology to stop your trailer if it becomes detached from the tow vehicle. No other parts are required.

FEATURES:

When Electrically Disconnected from the Tow Vehicle, the IQ7 Compressor Activates the Hydraulic Park Brake

Mounted Actuator Internally or Externally

Australian Made with the National Service Network

Suits Caravans and Boat trailers Fitted with Hydraulic Disc Brakes

Breakaway Kit and Switch Included

SPECIFICATIONS:

Maximum hydraulic pressure for IQ7 is 1000psi ( 6.9 Mpa ) and fluid displacement of 21cc

For Trailers up to 3 Tonne with Electric over Hydraulic Brake Applications

Meets ADR Breakaway Requirements for Trailers over 2000kg

Hydraulic Braking Systems that suit:

Independent Coil Suspension Kit – Hydraulic

45mm Square Galvanised Hydraulic 1450kg Disc Brake Axle

50mm Square Hydraulic Disc Brake Axle

60mm Round 2t – 3t Hydraulic Disc Braked Axle

Approved Motion Sensing Brake Controllers Compatible with the iQ7:

Hayes Energiser lll

Tekonsha Primus IQ

Tekonsha Prodigy P2

Tekonsha P3

REDARC Tow-Pro Elite

Elecbrakes ELBC2000PS
