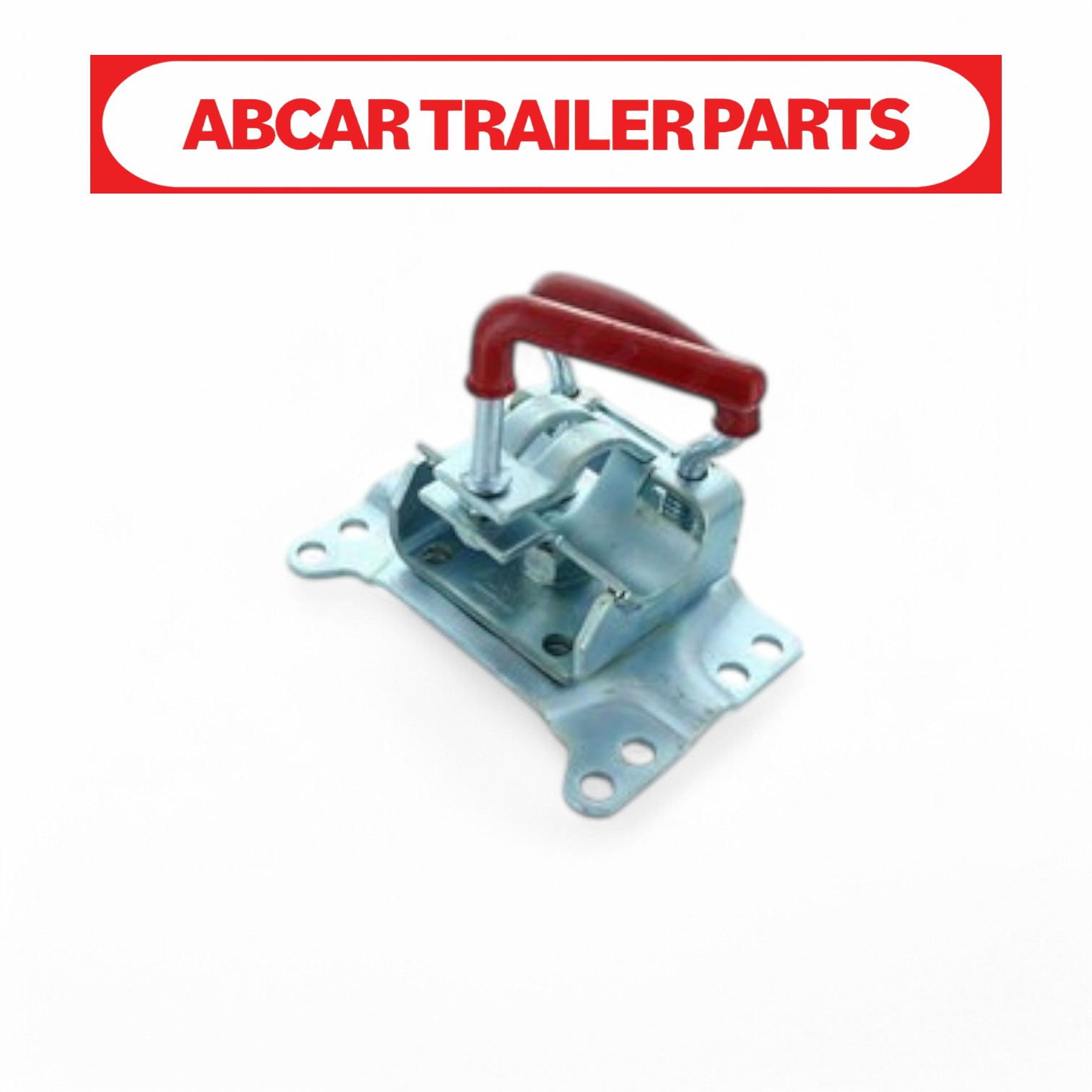

This unique Jockey Wheel Clamp is designed to fit 48mm outer tubes allowing you to adjust the height position and also has a locking pin swivel function which enables you to swivel the jockey wheel for travel.

Features:

Suits 350kg Jockey Wheels

Zinc Plated Finish

Solid Steel Construction with a Spring-Loaded Pin for Self-Locking

Easy Fit to your A-Frame, Just U-Bolt it to Any Chassis with its Multi-Fit Base

Suits 50mm, 75mm and 100mm High Draw Bars

No Welding Required, Bolt Clamp Holds Jockey Wheel Securely.

This unique design is covered by Registered Design in Australia and New Zealand

Specifications:

Dimensions:  Height: 150mm
                      Width: 210mm

Mounting Details:  Spacings: 185mm x 50mm
                                                      185mm x 75mm
                                                      185mm x 100mm

Hole Diameter: 13mm
