These Cruisemaster DO35 couplings are designed for superior Security, Off-Road Articulation, Towing capacity, and Weather resistance when towing or storing your caravan or trailer.

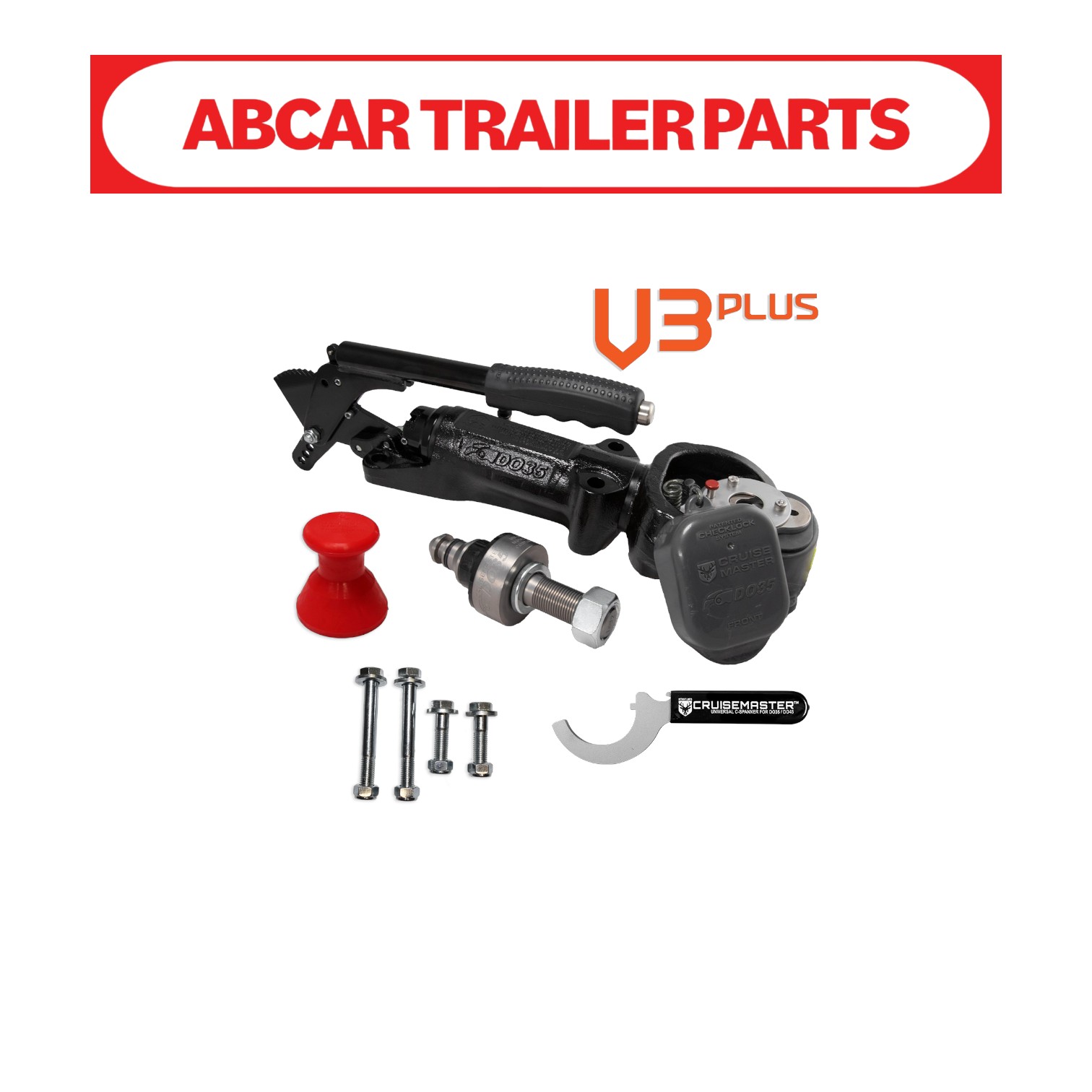

Kit Includes:
1 x DO35 V3Plus Coupling with Handbrake
1 x Unique Cruisemaster Tow Pin With a 7/8" Inch Shaft
1 x Tow Pin Cover
1 x Universal C Spanner
4 x Fitting Bolts
Features:
3500Kg Rating
2 Stage ADR compliant locking mechanism - Automatic Secondary lock
Zinc/Nickel and E-Coat Combination for Anti Corrosion Protection
Comes with “Checklock” Gen.2 Dust Cap & Bumper ensuring a simple, secure seal.
Rear support webbing - Can be mounted Upside down to the under side of your drawbar
High articulation for improved handling off-road
Exceeds ADR 62/01 and 62/02 strength requirements
Forged Yoke & Rear Nut for added strength
Improved towing safety
Greaseable Bushes for simple maintenance and reduced noise
Low profile Bumper & Cap for Good Clearance
No tow ball height restrictions
Specifications:
ARTICULATION | 360° Axial, Minimum 70° Other Axes |
LOCKING | Full ADR 62/02 Compliance Inc. Secondary Auto Lock |
RATING | 3.5 Tonne |
MECHANISM | Drop-On Design |
MAINTENANCE | Fully Greasable |
BOLT SIZES | 2 X 185mm & 2 X 54mm |
