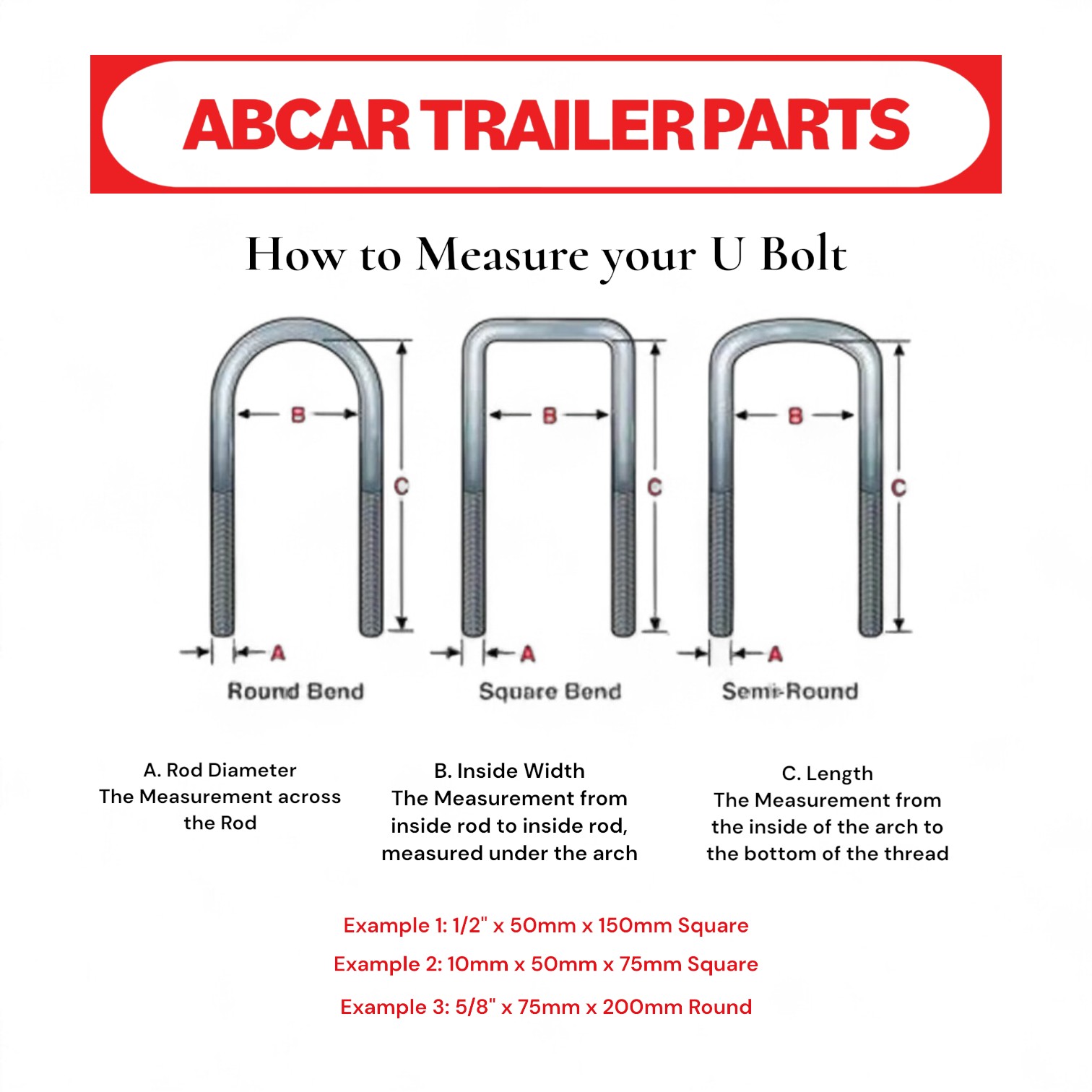

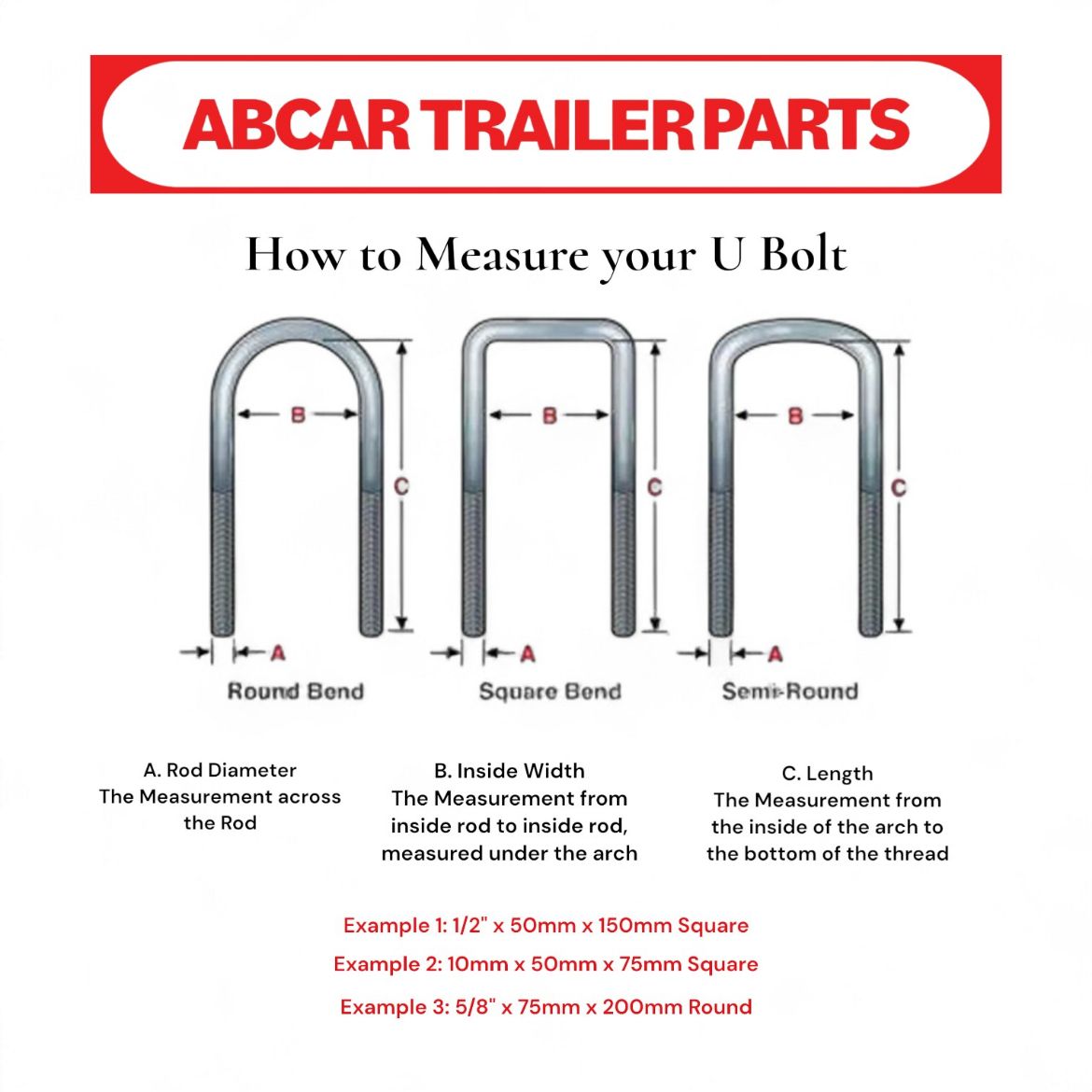

How to Measure a U-Bolt

1. Diameter:

Measure the thickness of the rod on the threaded section. Do not measure the smooth, unthreaded part of the shaft.

2 Inside Width:

Place a tape measure on the inside of one leg and extend it to the inside of the other leg under to the arch. This is the most crucial measurement, as the U-bolt must fit your component's width.

3. Leg Length:

Measure from the inside of the U-bolt arch, to the bottom of the thread on one of the legs.
