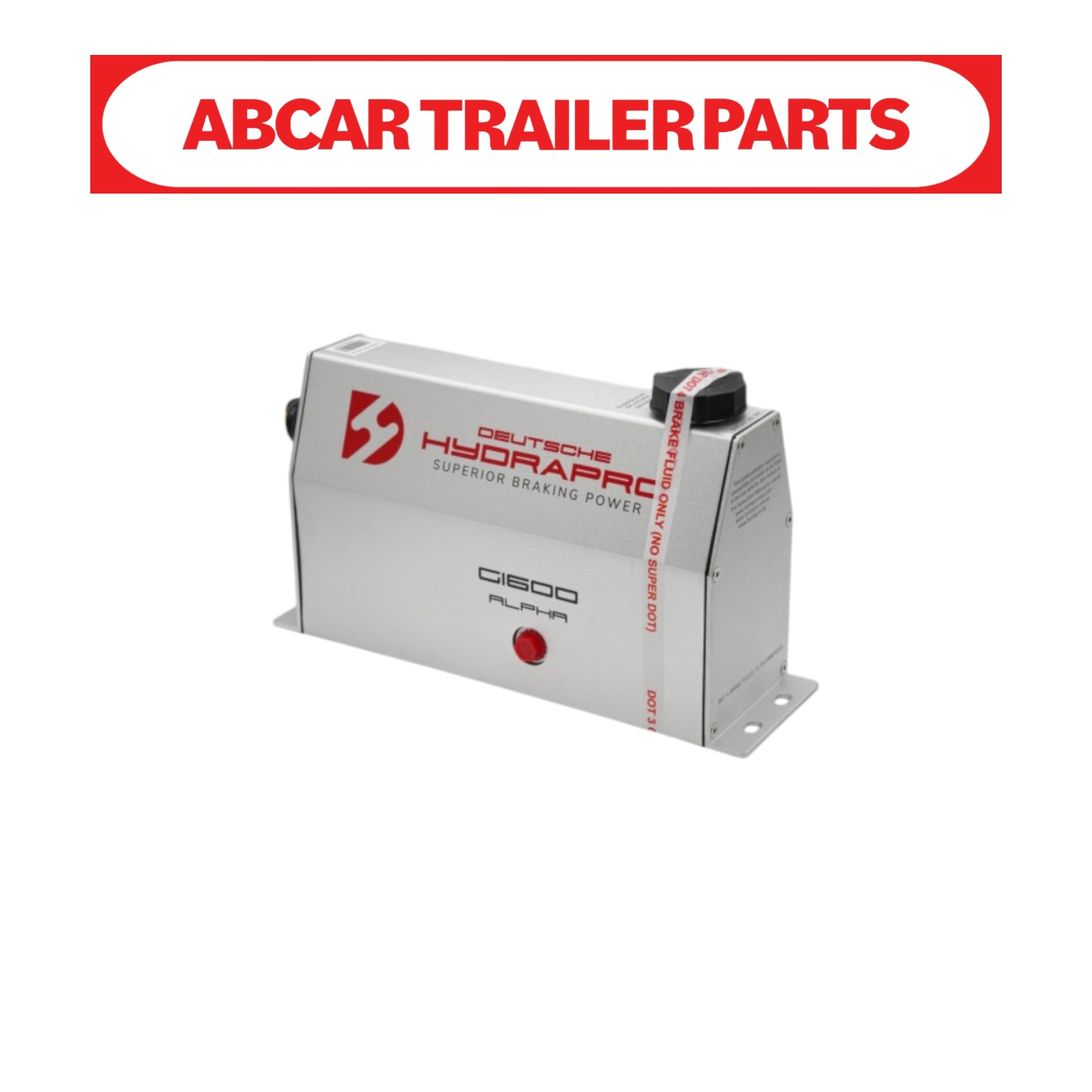

This Hydrapro electric over hydraulic brake actuator was designed by the team at Deutsche Hydrapro to be ultra high quality and the simplicity of its design and operation gives you the absolute reliability required for a trailer braking system. It has a superior response time that delivers shorter stopping distances, which provides the driver with confidence and peace of mind whilst towing your trailer.

Features
Comes with a brake line fitting that has 360 degrees of movement, so you can connect your brake line from all mounting positions
High powered DC Motor and quality pump with minimal moving parts for reliability.
Independently sealed fluid tank, which provides extra fluid reserves
Weather proof, anodised alloy case to protect components from the external elements
Robust electronics board that has a protective coating for corrosion resistance
Competitive pricing, making the safer choice of a EOH braking system much easier
Compact, one of the smallest on the market which makes it easy to install.

Specifications
1600psi - to suit trailers from 2t up to 4.5t with disc brakes

Dimensions
Length: 255mm
Height: 152mm
Width: 90mm Base / 44mm Top

Mounting centres
275mm Length and 40mm Width

Brake Fluid
Can use Dot 3 but Dot 4 is recommended

If you have damaged your control board, you dont need to replace the whole unit, you can simply replace the control board HBA-AGCBCA
